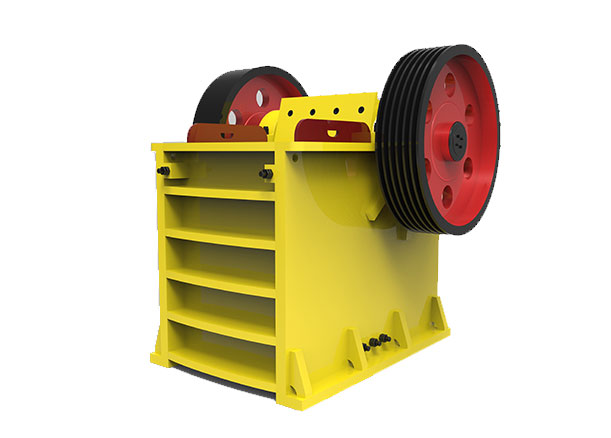

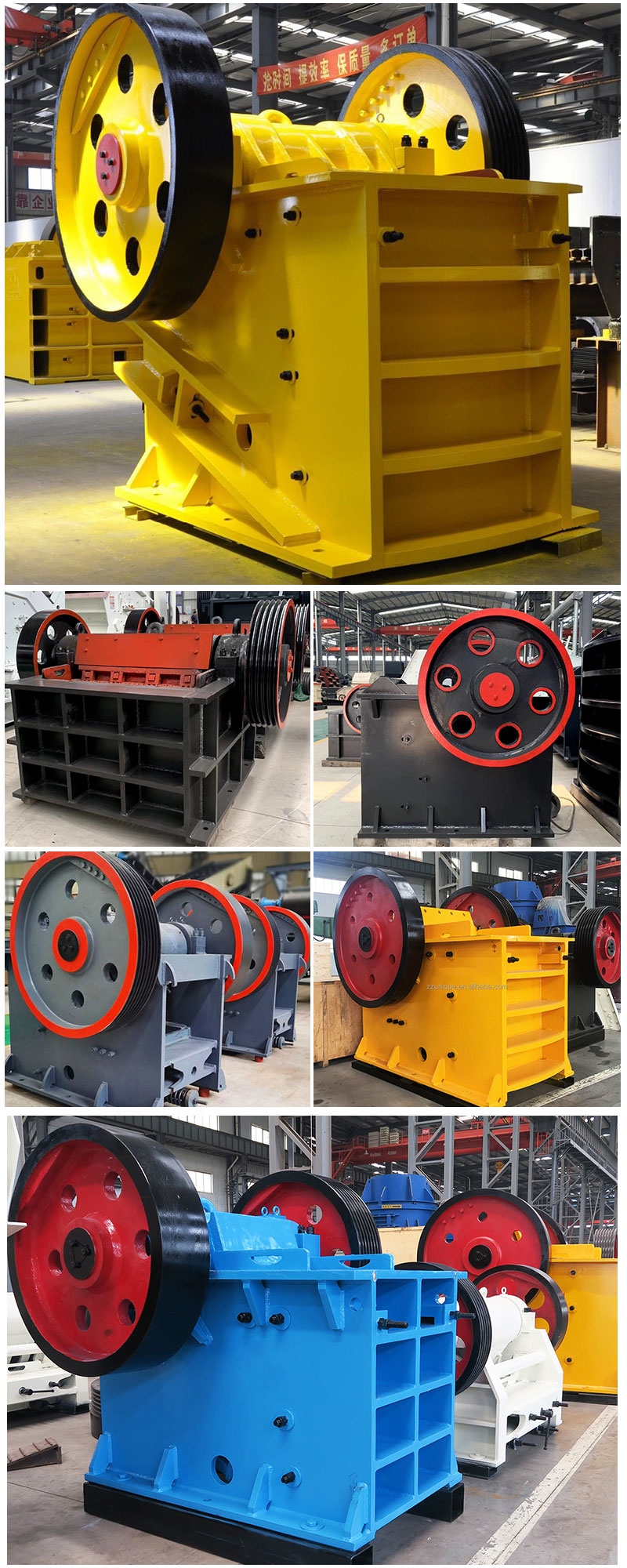

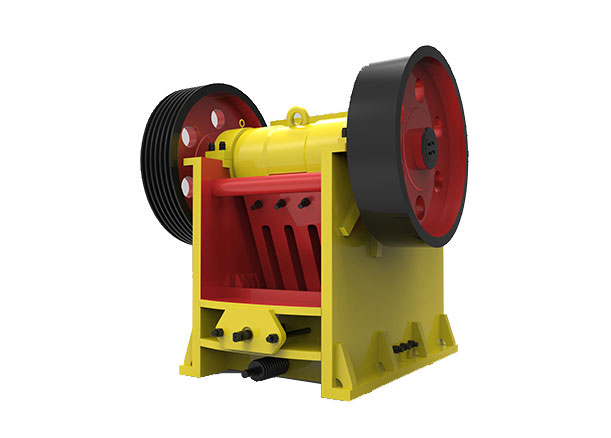

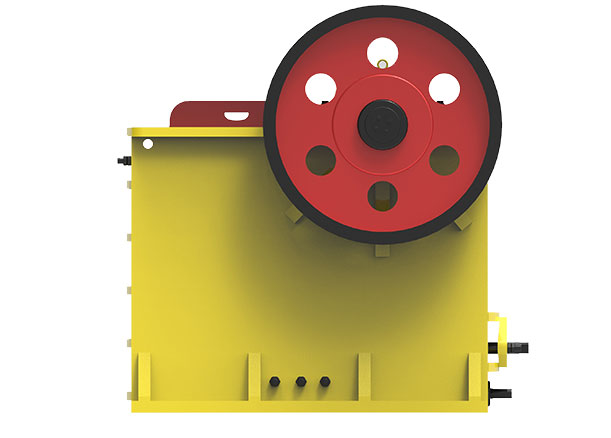

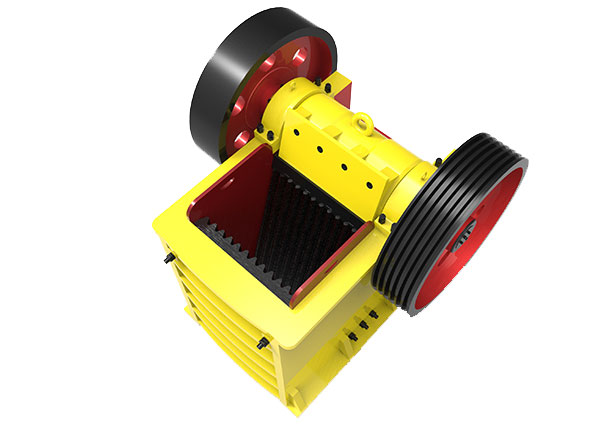

Jaw Crusher

Processing capacity:1-800t/h panga pandurog

Feeding size:≤1020mm panga pandurog

Crushing material:limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc

Applied field:This crusher widely used in quarry, mining, coal, aggregate, sand making, concrete recycle

Introduction: Inquiry Now

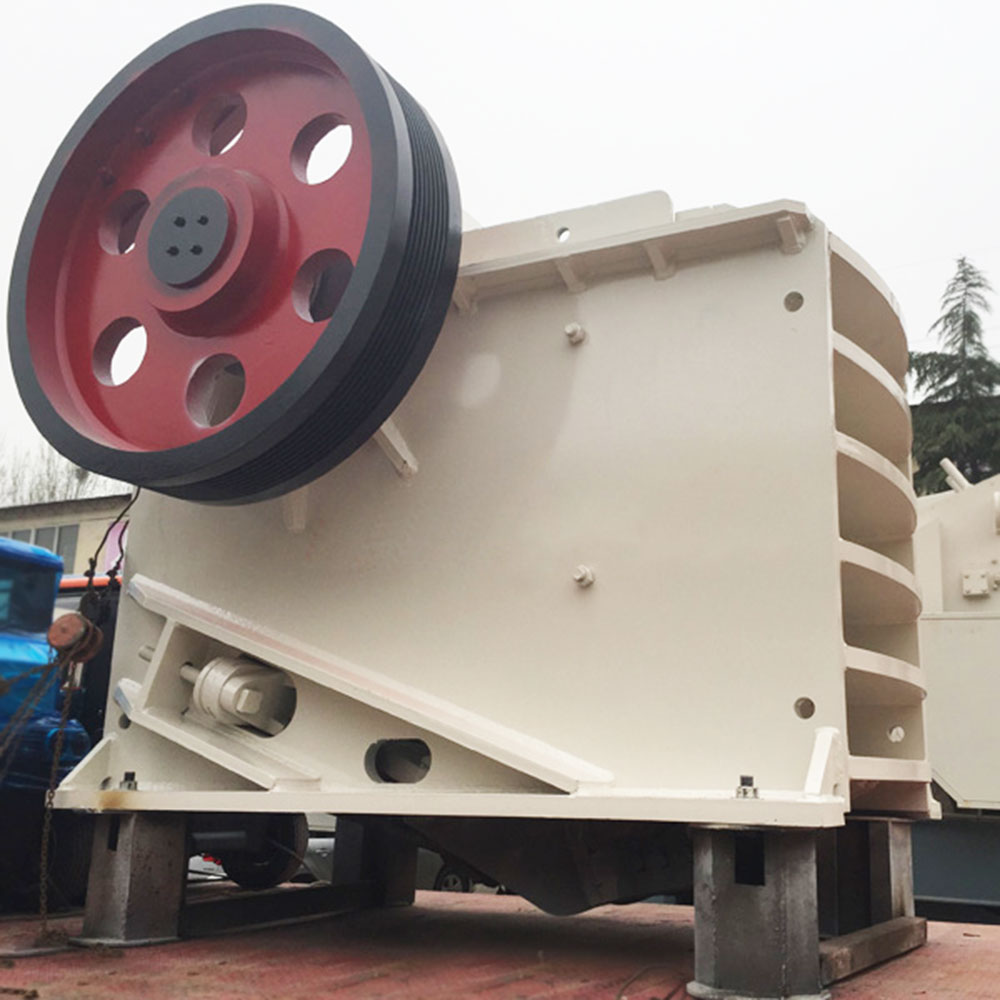

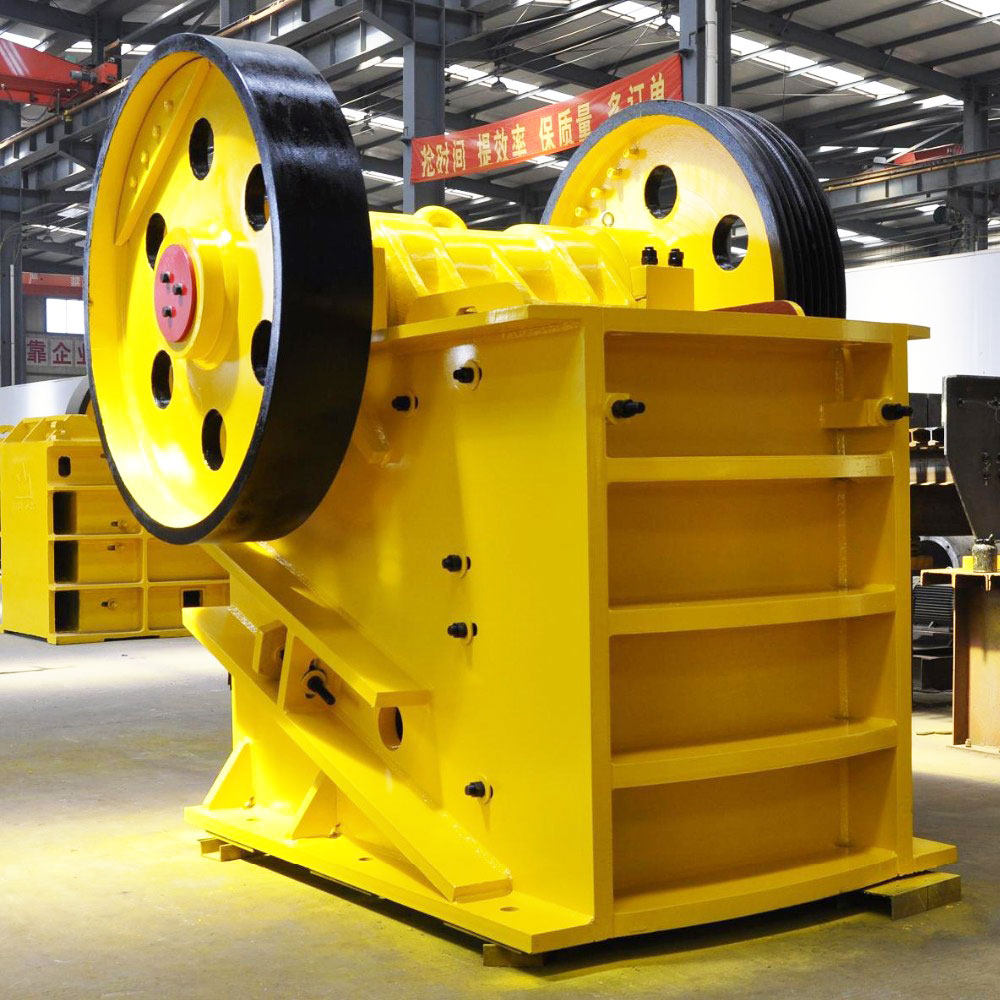

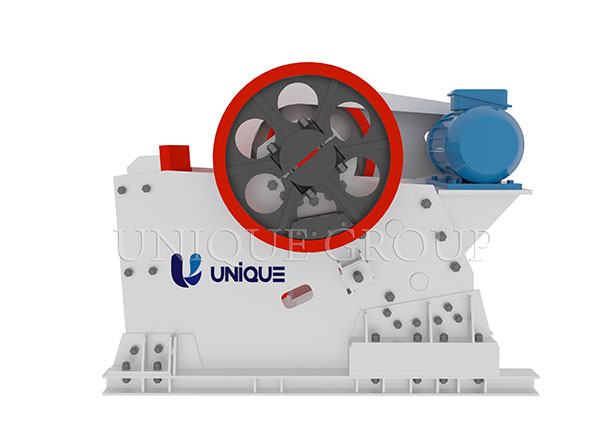

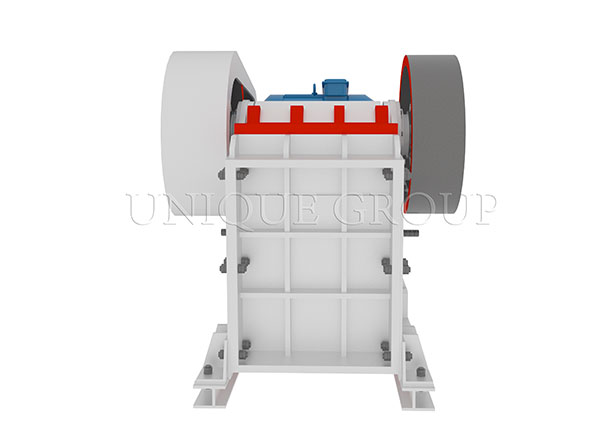

Jaw Crusher is ideally suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is of high crushing ratio, larger capacity, well-distributed final product size, simple structure, reliable performance, convenient maintenance, lower operation cost, etc. It is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc. Coarse Jaw crusher usually used be primary crusher in stone crusher plant.Jaw crusher is Called panga pandurog sa pilipinas, bato pandurog para ibenta sa pilipinas.

Features and Benefits of Jaw Crusher:

1,Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers

2,lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance

3,simple structure, reliable performance, low maintenance cost

4,little dust and low noise

Jaw crusher can crush many materials, such aslimestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc. it is widely used in quarry, mining, coal, aggregate, sand making, concrete recycle.Jaw crusher is Called panga pandurog sa pilipinas, bato pandurog para ibenta sa pilipinas.





Working Principle: Inquiry Now

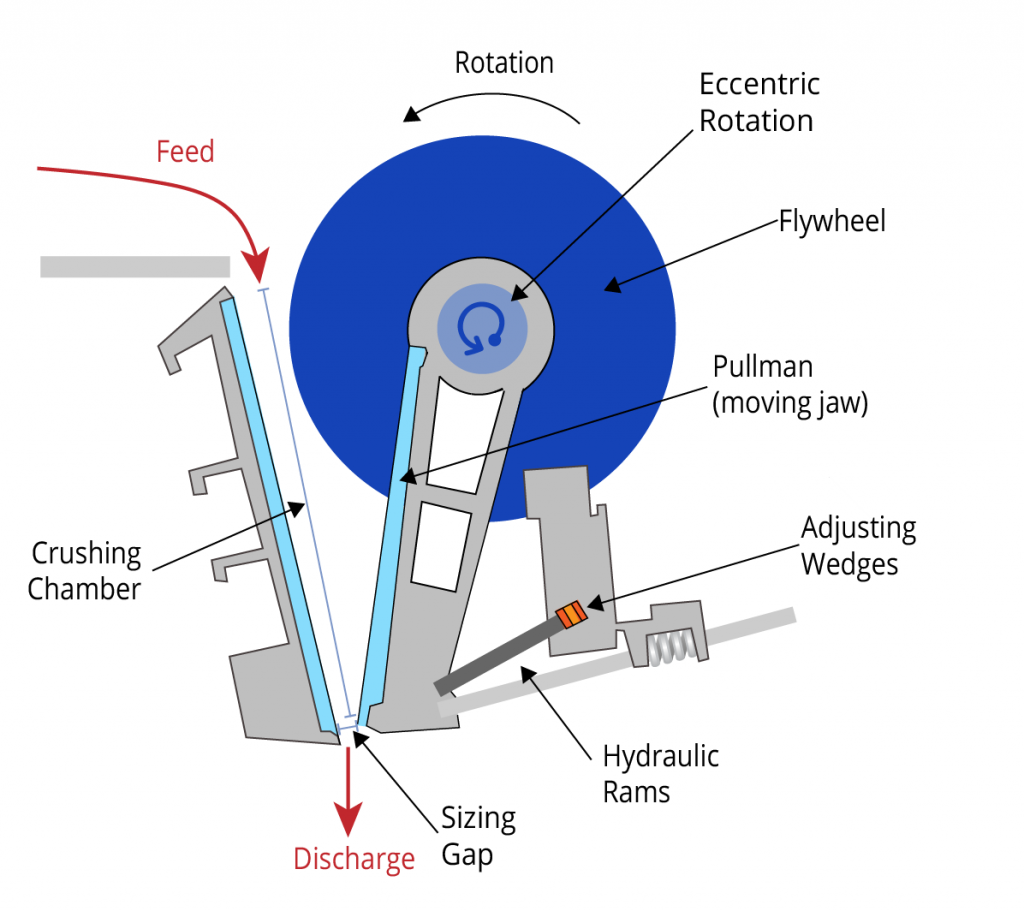

Operating Principle of Jaw Crusher:

The electrical motor transmits power to the eccentric shaft through v-belt and belt pulley. Then the exciting force generated by the eccentric shaft will make the movable jaw move upwards and downwards. This movement would trigger the toggle plate to push the movable jaw forwards and backwards. When the movable jaw moves forth towards the fixed jaw, materials in the crushing cavity will be squashed or chopped. And then the movable jaw travels back, the chopped or squashed materials which meet the requirement will be discharged from the outlet. Since the motor keeps working. The crusher will crush and discharge periodically to achieve mass production.Jaw crusher is Called panga pandurog sa pilipinas, bato pandurog para ibenta sa pilipinas.

Parameters: Inquiry Now

Model Max feeding Size (mm) Adjusting range of discharge opening(mm) Capacity (t/h) Motor power (kw) Total weight (t) Dimensions (L*W*H)(mm)
PE-150*250 125 10-40 1-3 5.5 0.8 720*660*850
PE-250*400 210 20-60 5-20 15 2.8 1300*1090*1270
PE-400*600 340 40-100 16-60 30 7 1700*1732*1653
PE-500*750 425 50-100 40-110 55 12 2150*1860*2145
PE-600*900 500 65-180 50-180 55-75 17 2792*2168*2250
PE-750*1060 630 80-180 110-320 90-110 29 3100*2400*2950
PE-870*1060 750 170-270 218-353 90-110 33 3200*2400*2950
PE-900*1200 750 95-255 220-450 110-132 52 3380*2870*3330
PE-1000*1200 850 195-280 315-500 110-132 55 3480*2876*3330
PE-1200*1500 1020 150-300 400-800 160 100.9 4200*3300*3500
PEX-150*750 120 18-48 8-25 15 3.8 1200*1530*1060
PEX-250*750 210 25-60 13-35 22 5.5 1400*1617*1412
PEX-250*1000 210 25-60 16-52 30-37 7 1560*1950*1390
PEX-250*1200 210 25-60 20-61 37-45 8.7 1530*2192*1380
PEX-300*1300 250 20-90 25-95 55-75 11.6 1930*2400*1747
