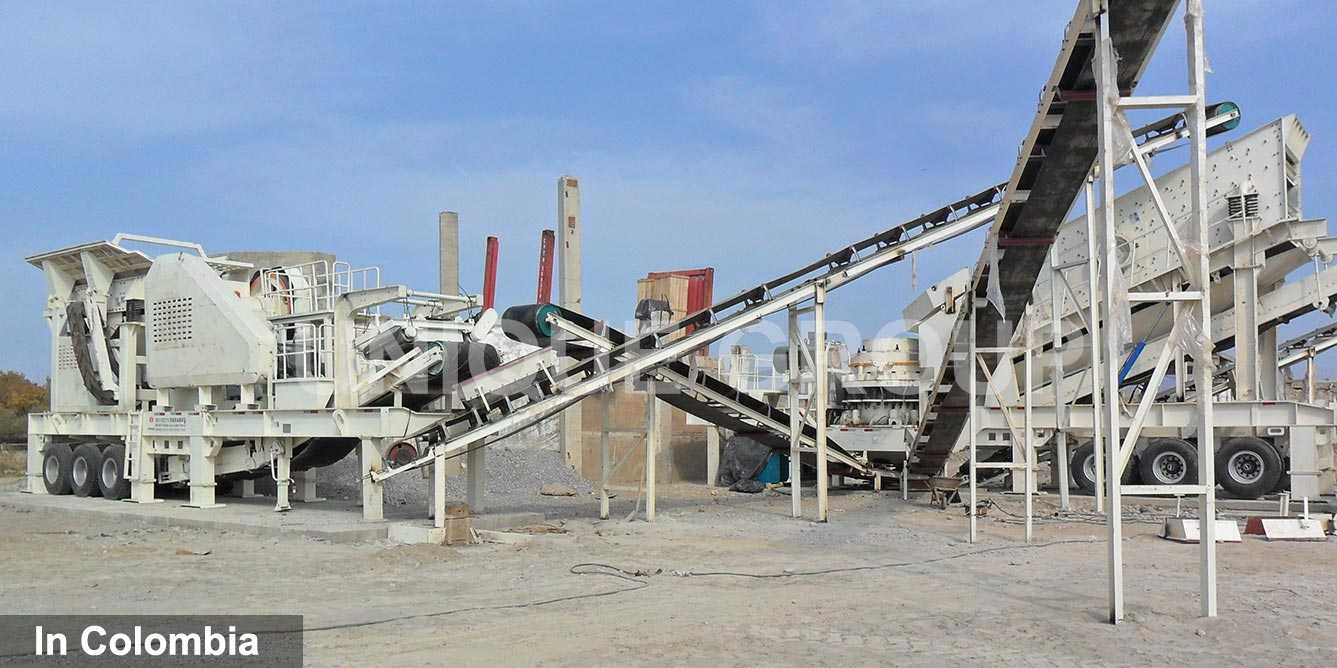

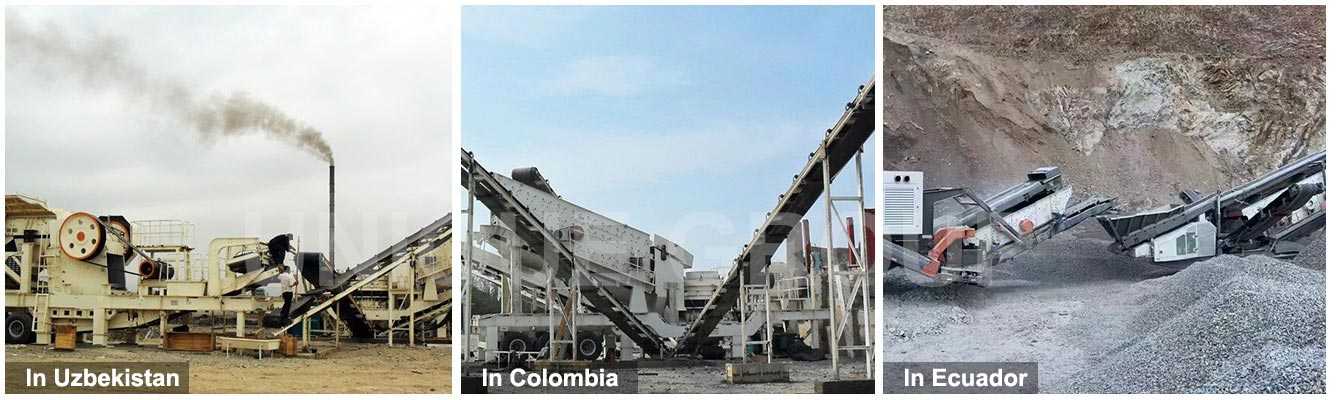

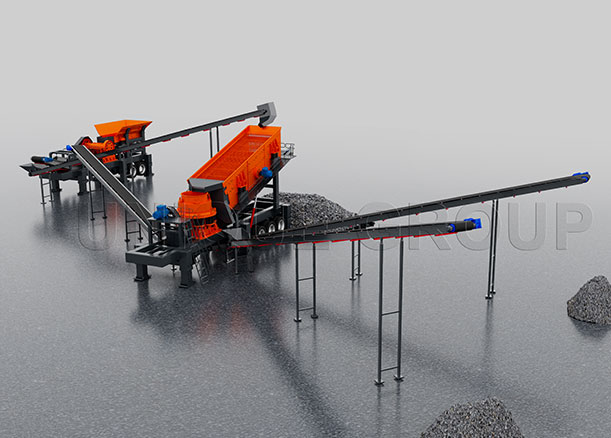

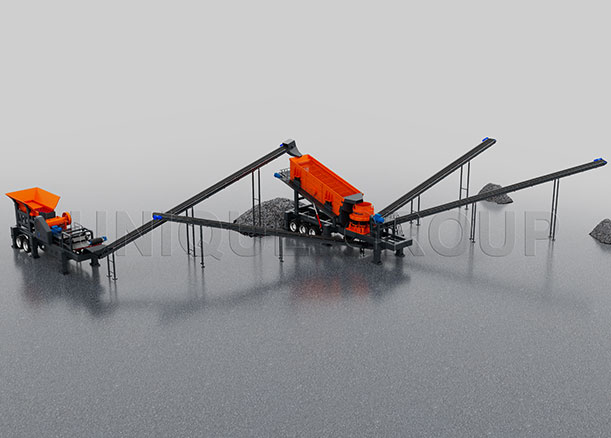

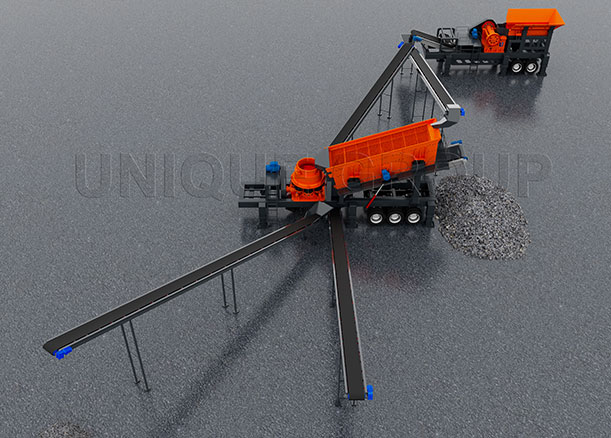

100-200tph mobile crusher plant
Introduction:Portable/Mobile crusher plant is designed based on the conception of fully adapting various crushing condition, eliminating obstacles caused by location, environment, foundation configuration, consequently providing simple, efficient, low-cost crushing equipment.
Introduction: Inquiry Now
Portable/Mobile crusher plant is designed based on the conception of fully adapting various crushing condition, eliminating obstacles caused by location, environment, foundation configuration, consequently providing simple, efficient, low-cost crushing equipment.
Features and principle: Inquiry Now
Features:
1.Built with high quality jaw crusher, cone crusher and impact crusher
2.Feeder, screen and belt conveyor on board
3.Tractive steering shaft, convenient for road transportation
4.Integrated with landing gears, quick and convenient installation on site
5.Integrated motor and control panel.
Parameters: Inquiry Now
| Model | Vibrating feeder | Jaw crusher | chasis | Belt(output) | Power(KW) |
| YDS50 | GZT0724 | PE400×600 | (2 axel）11m | B650=8m | 48 |
| YDS80 | GZT0724 | PE500×75 | (2 axel）11m | B650=8m | 73 |
| YDS100 | GZT0932 | PE600×900 | (2 axel）11m | B800=8m | 78 |
| YDS180 | GZT1148 | PE750×1060 | (2 axel）13m | B1000=8m | 145.5 |
| YDS300 | GZT1256 | PE900×1200 | (2 axel）15m | B1200=8m | 201.5 |
| Model | YDS50 | YDS80 | YDS100 | YDS180 |
| component | (PYB900+3YKX1235) | (PSGB0918+3YKX1548) | (PYB1200+3YKX1860) | (PSGB1321+3YKX2160) |
| cone crusher | PYB900 | PSGB0918 | PYB1200 | PSGB1321 |
| vibrating screen | 3YKX1235 | 3YKX1548 | 3YKX1860 | 3YKX2160 |
| chasis | (two axel）11m | (two axel）12m | (two axel）12m | (two axel）13m |
| belt(output) | B650=7m | B650=7m | B800=7m | B1000=8m |
| Power(kw) | 77 | 160 | 138 | 202.5 |
| Model | YDFS1215 | YDFS1218 | YDFS1321 | YDFS1324 |
| vibrating screen | 3YA1548 | 3YA1860 | 3YK2160 | 3YK2460 |
| Impact crusher | PF1210 | PF1214 | PF1315 | PF1320 |
| Max.feeding size（mm） | 350 | 350 | 500 | 500 |
| Capacity（t/h） | 50-80 | 100-150 | 150-200 | 250-300 |
| belt(output) | B800 | B1000 | B1200 | B1400 |
| Chasis | 2 axel | 2 axel | 3 axel | 3 axel |
