200-300tph mobile crusher plant
Capacity:200-300t/h
Applications:mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
Processed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
What is the machine?: Inquiry Now

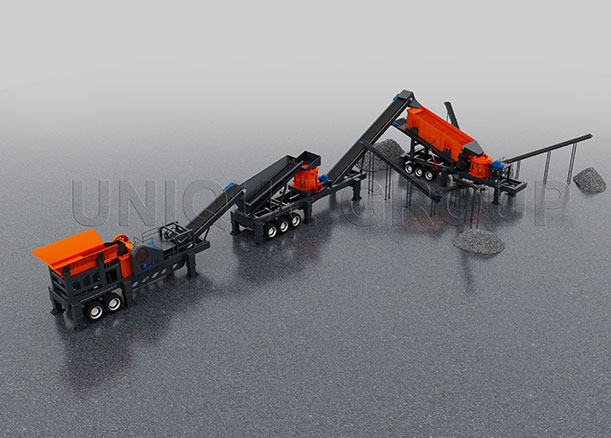

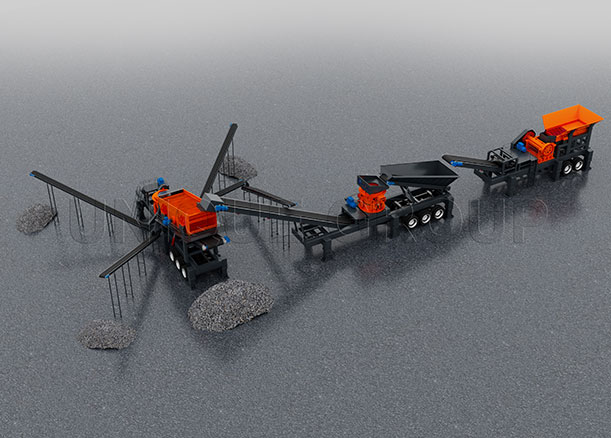

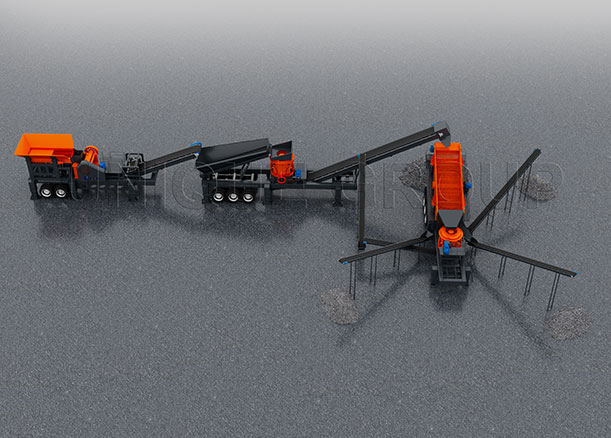

Portable/Mobile crusher plant is designed based on the conception of fully adapting various crushing condition, eliminating obstacles caused by location, environment, foundation configuration, consequently providing simple, efficient, low-cost crushing equipment.
How does it works?: Inquiry Now
Features:
1.Built with high quality jaw crusher, cone crusher and impact crusher
2.Feeder, screen and belt conveyor on board
3.Tractive steering shaft, convenient for road transportation
4.Integrated with landing gears, quick and convenient installation on site
5.Integrated motor and control panel
Solutions: Inquiry Now
| YDS300 Jaw crusher plant （PE9012+GZT1256） | ||||
| Item | model | unit | quantity | power（kw） |
| Hopper | YDS180 | set | 1 | 0 |
| vibrating feeder | GZT1256 | set | 1 | 15 |
| Jaw crusher | PE900x1200 | set | 1 | 160 |
| jaw crusher steel structure | PE900x1200 | set | 1 | 0 |
| mobile trailer(4 axles) | 15m | set | 1 | 0 |
| steel structure | YDS220 | set | 1 | 0 |
| belt conveyor(output aggregate) | B1200=8m | set | 1 | 18.5 |
| PLC | YDS220 | set | 1 | 0 |
| Cable | YDS220 | set | 1 | 0 |
| support | YDS220 | set | 1 | 0 |
| belt conveyor(output dust) | B500=3m | set | 1 | 4 |
| hydraulic system | YDS220 | set | 1 | 4 |
| YDS300 Impact crusher plant（PF1320+3YKX2454） | ||||
| Item | model | unit | quantity | power（kw） |
| impact crusher | PF1320 | set | 1 | 400 |
| impact crusher steel structure | PF1320 | set | 1 | 0 |
| vibrating screen | 3YKX2454 | set | 1 | 30 |
| screen steel structure | 3YKX2454 | set | 1 | 0 |
| mobile trailer(4 axles) | 15m | set | 1 | 0 |
| steel structure | YDS220 | set | 1 | 0 |
| belt conveyor | B1400=8m | set | 1 | 18.5 |
| PLC | YDS220 | set | 1 | 0 |
| cable | YDS220 | set | 1 | 0 |
| support | YDS220 | set | 1 | 0 |
| hydraulic system | YDS220 | set | 1 | 5.5 |
