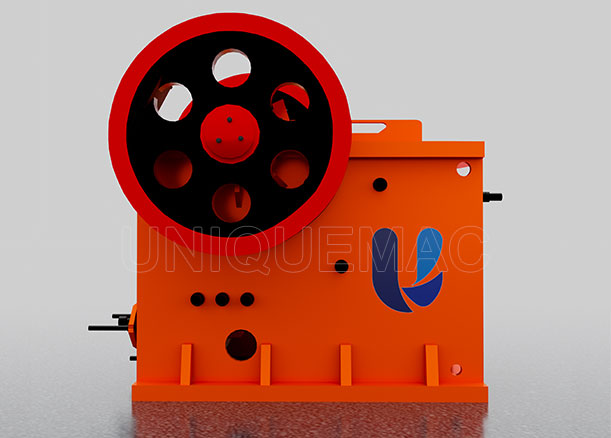

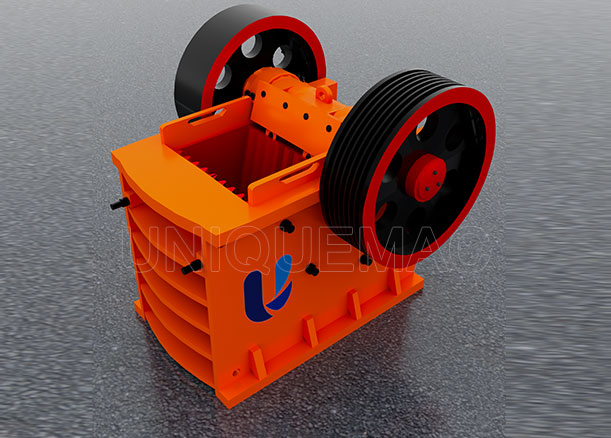

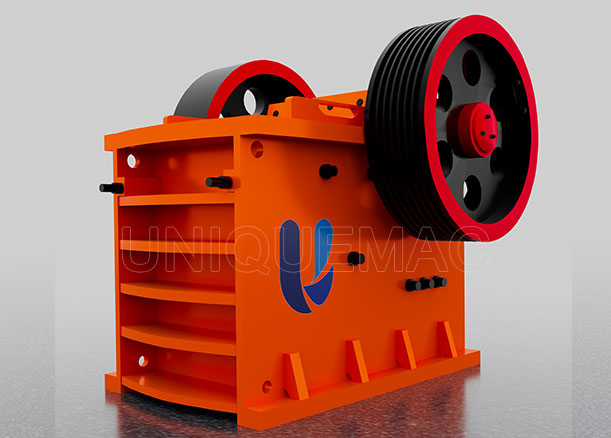

Jaw Crusher

【Feeding Size】: ≤ 1000mm

【Output Size】: 15 – 300mm

【Capacity】: 0 – 800T/H

【Crushing materials】: Quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.

【Applications】: Widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc.

What is the machine?: Inquiry Now

What is jaw crusher? Jaw crusher is a kind of mechanical equipment widely used for crushing large materials such as ore and building materials. The following is a detailed introduction to jaw crusher:

1. Definition and basic composition

The jaw crusher consists of two jaw plates, the moving jaw and the static jaw, forming a crushing chamber. It simulates the movement of the two jaws of an animal to complete the material crushing operation. It is widely used in the crushing of various ores and bulk materials in the mining and smelting, building materials, highways, railways, water conservancy and chemical industries. The maximum compressive strength of the crushed material is 320Mpa.

2. Different types

A. According to the particle size of the crushed material, jaw crusher can be divided into:

Coarse crushing jaw crusher: mainly used to crush large pieces of material into medium particle size, with a large crushing ratio, suitable for mining, construction and other industries.

Medium crushing jaw crusher: the particle size of the crushed material is more uniform, suitable for further processing or direct use.

Fine crushing jaw crusher: more fine crushing of materials, suitable for occasions where small particle size materials are required.

B.Classification by Performance

The classification of jaw crushers by performance is mainly based on their crushing capacity, feed size, discharge size, production capacity and other indicators, and is usually divided into the following categories: ordinary jaw crusher, fine jaw crusher, European jaw crusher. These classification methods reflect the differences in crushing ratio, production capacity and adaptability of the equipment.

2. Performance characteristics of various types of jaw crushers

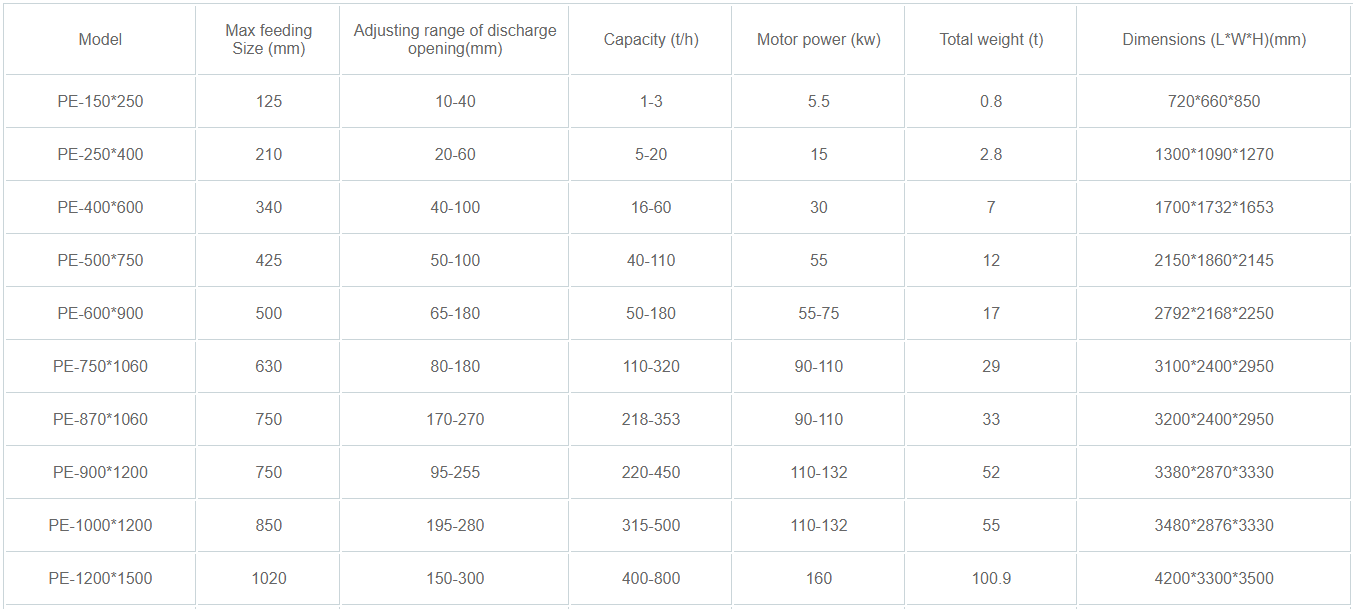

(1) Ordinary jaw crusher (PE series)

Features:

Large crushing ratio, simple crushing chamber structure, and easy maintenance.

Applicable to ores and rocks with a compressive strength not exceeding 320MPa.

Application scenarios:

Applicable to large, medium and small stone processing, such as granite, basalt, limestone, etc.

Typical models:

PE-250×400, PE-400×600, PE-600×900, etc.

Performance parameters:

Maximum feed size: 1200mm.

Production capacity: 1-1000t/h.

Discharge opening adjustment range: 10-350mm.

(2) Fine jaw crusher (PEX series)

Features:

The crushing chamber has a large depth and a higher crushing ratio, which is suitable for fine crushing operations.

Applicable to materials with a compressive strength not exceeding 250MPa.

Application scenarios:

Used for fine crushing of medium-hard materials, such as quartz stone, river pebbles, etc.

Typical models:

PEX-150×250, PEX-250×1000, etc.

Performance parameters:

Maximum feed size: 500mm.

Production capacity: 15-50t/h.

Discharge opening adjustment range: 10-100mm.

(3) European jaw crusher (CJ series)

Features:

Advanced technology, optimized crushing chamber design, and high crushing efficiency.

Adopts wedge-type discharge opening adjustment, which is more convenient to operate.

Application scenarios:

Applicable to large-scale sand and gravel aggregate production lines, crushing materials with a compressive strength not exceeding 300MPa.

Typical models:

CJ150, CJ250, etc.

Performance parameters:

Maximum feed size: 1200mm.

Production capacity: 80-1160t/h.

Discharge opening adjustment range: 60-300mm.

3. Main features

Large crushing ratio: can efficiently crush various large pieces of materials.

Uniform product size: the crushed material has uniform particle shape and no needle-like flakes.

Simple structure: compact design, easy to install and maintain.

Low operating cost: low energy consumption and easy maintenance.

Wide range of applications: can crush ores and building materials with a compressive strength not exceeding 320 MPa.

4. Application areas

Jaw crushers are widely used in the following industries:

Mining: used for coarse and medium crushing of ores, such as iron ore, copper ore, granite, etc.

Building materials: crushing sand and gravel aggregates for road and railway construction.

Metallurgy: used for ore preparation before smelting.

Chemical and water conservancy: crushing bulk materials in chemical raw materials or water conservancy projects.

Jaw crushers have become important equipment in industries such as mining, construction and metallurgy due to their high efficiency, reliability and wide range of applications. According to different crushing needs, choosing the right jaw crusher model (such as coarse crushing, medium crushing or fine crushing equipment) can significantly improve production efficiency and economic benefits.

How does it works?: Inquiry Now

How does jaw crusher works? The working principle of a jaw crusher is to apply pressure and shear force to the material through the relative movement between the movable jaw plate and the fixed jaw plate, thereby achieving material crushing. Its core component is the crushing chamber, which is composed of a fixed jaw plate and a movable jaw plate. The material is crushed by being squeezed, split, bent and broken in the crushing chamber.

Detailed description of working principle

The working process of a jaw crusher can be divided into the following stages:

(1) Motor drive

The motor transmits power to the eccentric shaft through a belt and a pulley to make it rotate.

(2) Eccentric shaft rotation

The rotation of the eccentric shaft drives the movable jaw plate to move up and down periodically. The movable jaw plate is connected to the eccentric shaft through a toggle plate, and the movement trajectory is curved.

(3) Jaw plate movement

When the movable jaw plate approaches the fixed jaw plate, the material is clamped between the two jaw plates and is crushed by being squeezed, split, bent and broken.

When the movable jaw plate moves away from the fixed jaw plate, the crushed material is discharged from the discharge port below the crushing chamber under the action of gravity.

(4) Cyclic operation

With the continuous operation of the motor, the movable jaw plate moves periodically, continuously crushing and discharging materials to achieve batch production.

Working characteristics of jaw crusher

Crushing method: flexural extrusion type, high crushing efficiency, the material in the crushing chamber is subjected to multiple forces (extrusion, splitting, bending).

Crushing chamber design: The crushing chamber is large at the top and small at the bottom, which is convenient for material entry and discharge.

Scope of application: Mainly used for coarse and medium crushing of materials with high compressive strength such as ores and rocks, with a wide range of feed particle sizes (125-1200mm) and an adjustable discharge port.

Solutions: Inquiry Now

What’s the solutions about jaw crusher?

Jaw crusher plant is a comprehensive crushing equipment that integrates crushing, screening, and conveying functions. It is widely used in mining, construction, road construction, water conservancy projects, and other fields. The following is a detailed introduction from the aspects of function, composition, and use:

1. Functions of a jaw crusher station

The main functions of a jaw crusher station include:

Crushing: Use a jaw crusher to crush large pieces of material into smaller particle sizes. and then, transfer the smaller crushed material to secondary crushing machine (usually is cone crusher or impact crusher, choosing according to the hardness of raw material). after secondary crushing, the rocks will be final products, and then which will be transport to screen to classify.

Screening: Equipped with screening equipment, the crushed materials are graded to meet the needs of different particle sizes.

Conveying: The crushed and screened materials are transported to the designated location through a conveyor belt to achieve continuous production.

Easy to move: Some jaw crushers are designed to be mobile, which can be flexibly transferred to different working environments.

2.Composition of a jaw crusher plant

A jaw crusher plant usually consists of the following parts:

Jaw crusher: As the core equipment, it is responsible for the primary coarse crushing of materials.

Cone crusher or impact crusher: as the secondary crushing equipment, it is responsible to crush the smaller crushed materials into final  products.

Feeding equipment: Feed the material to be crushed evenly into the jaw crusher.

Screening equipment: Classify and screen the crushed materials.

Conveying equipment: including belt conveyors, etc., used for material transportation.

Control system: realize automatic operation and remote monitoring of equipment.

3. Uses of jaw crusher plant

Jaw crusher plant is widely used in the following scenarios:

Mining: crushing ore to provide raw materials for subsequent beneficiation or smelting.

Construction: crushing sand and gravel aggregates for concrete mixing plants or road construction.

Road construction: providing aggregates that meet the particle size requirements for paving roads, railways, etc.

Water conservancy projects: crushing large pieces of materials to meet the material needs of dams, bridges and other projects.

Other fields: such as metallurgy, chemical industry, building materials and other industries, used to crush ores and rocks with a compressive strength of no more than 320MPa.

4. Features of jaw crusher plant

Efficient and convenient: integrates multiple functions to achieve continuous operation and improve production efficiency.

Strong flexibility: mobile design facilitates transfer and adapts to a variety of working environments.

Energy saving and environmental protection: the equipment operates stably, has low energy consumption, and meets environmental protection requirements.

Simple operation: high degree of automation, easy operation and maintenance.

5. Advantages of jaw crusher plant

High crushing efficiency: jaw crusher has large crushing ratio, reasonable crushing chamber design and high crushing efficiency.

Uniform particle shape: screening equipment can ensure uniform particle shape of discharge material to meet the needs of subsequent processing.

Strong adaptability: can process a variety of materials, including ore, rock, sand and gravel, etc.

Reduced cost: integrated design reduces equipment footprint and investment cost.

The wheel-type jaw crusher plant is a flexible and efficient mobile crushing equipment, suitable for mining, construction waste treatment, road construction and other scenarios. The following is a detailed introduction from the aspects of function, characteristics, use and difference from other types of jaw crusher:

1. Function of wheel-type jaw crusher plant

The wheel-type jaw crusher integrates crushing, screening, conveying and other functions. The main functions include:

Crushing: Efficient crushing of bulk materials by primary jaw crusher and other secondary crusher.

Screening: Equipped with vibrating screen to grade and screen the crushed materials.

Conveying: The materials are transported to the designated location by belt conveyor.

Mobility: It is driven by tires and can be flexibly transferred to different working environments.

2. Features of wheel-type jaw crusher plant

Flexible mobility: The tire design is easy to move on rugged roads and complex environments, and has strong adaptability.

Convenient operation: High degree of automation, simple operation, and remote control.

Energy saving and environmental protection: The equipment is equipped with noise reduction and dust removal devices to reduce the impact on the environment.

Strong adaptability: can handle a variety of materials, including granite, basalt, limestone, construction waste, etc.

Low maintenance cost: compared with crawler crushing station, tire crushing station has lower energy consumption and maintenance cost.

3. Uses of wheel jaw crusher plant

Tire jaw crusher is widely used in the following fields:

Mining: crushing ore for mineral processing or smelting.

Construction waste treatment: recycling construction waste to achieve resource reuse.

Road construction: crushing sand and gravel aggregate for highway and railway construction.

Water conservancy project: handling large materials required for dams, bridges and other projects.

4. Advantages of tire jaw crusher

Efficient and continuous production: integrating crushing, screening and conveying to achieve continuous operation and improve production efficiency.

Flexible transfer: can be directly driven to the site for operation, reducing logistics and site restrictions.

Reduced cost: the equipment occupies a small area, has low investment cost, and reduces the demand for infrastructure construction.

Excellent environmental performance: equipped with noise reduction and dust removal devices, in line with modern environmental protection requirements.

5. The difference between wheel-type jaw crusher and other types of jaw crusher plant

(1) Comparison between wheel-type and crawler-type

Drive mode: tire-type is driven by wheel, crawler-type is driven by crawlers.

Mobility and flexibility: wheel-type is more suitable for flat roads, crawler-type is suitable for complex terrain. Energy consumption and maintenance: tire-type has low energy consumption and lower maintenance cost; crawler-type is suitable for harsh terrain, but the maintenance cost is higher.

(2) Comparison between fixed and mobile type

Flexibility: mobile type can be flexibly transferred to various working environments; fixed type is limited by the site.

Cost: mobile type has lower investment cost, but fixed type may have higher production efficiency.

Adaptability: mobile type is more suitable for temporary or decentralized operations, fixed type is suitable for large-scale centralized production.

Summary

wheel-type jaw crusher plant has become an important crushing equipment in modern industry with its flexible mobility, efficient production capacity and environmental performance. Whether in mining, construction waste treatment or road construction, it can provide efficient and environmentally friendly solutions to meet diverse production needs.

Crawler jaw crusher is an efficient and flexible mobile crushing equipment, which is widely used in mining, construction waste treatment, highway construction and other fields. The following is a detailed introduction from the aspects of function, characteristics, use and difference from other types of jaw crusher:

1. Function of crawler jaw crusher

Crawler jaw crusher integrates multiple functions such as crushing, screening and conveying. The main functions include:

Crushing: Efficient crushing of bulk materials by jaw crusher.

Screening: Equipped with vibrating screen to grade and screen the crushed materials.

Conveying: Convey the materials to the designated location by belt conveyor.

Mobility: Crawler drive design, adapt to complex terrain, can easily complete the site transfer.

2. Characteristics of crawler jaw crusher

Strong adaptability: crawler design enables it to adapt to rugged terrain and harsh environment, suitable for complex places such as mines and construction sites.

High stability: crawler drive provides better grip and stability to ensure the safety of equipment during operation.

High efficiency and energy saving: The equipment runs stably, has high crushing efficiency, and has low energy consumption and maintenance costs.

Environmental performance: Equipped with noise reduction and dust removal devices to reduce the impact on the environment.

3. Application of crawler jaw crusher

Crawler jaw crusher is widely used in the following fields:

Mining: Crushing hard ores (such as granite, basalt, quartz, etc.).

Construction waste treatment: Crushing and screening construction waste to achieve resource recycling.

Infrastructure construction: Aggregate production for highways, railways, tunnels and other projects.

Other fields: Such as cement production, metallurgical industry, etc.

Summary

The crawler jaw crusher station has become an indispensable crushing equipment in modern industry due to its strong adaptability and high stability. It is particularly suitable for complex scenarios such as mining and construction waste treatment. At the same time, through energy-saving and environmentally friendly design and efficient crushing capacity, it provides users with efficient and environmentally friendly solutions.
