300-500tph stone crusher plant

Capacity:300-500tph stone crusher plant

CRUSHING MATERIAL:limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc

APPLIED FIELD:This crusher widely used in quarry, mining, coal.

Introduction: Inquiry Now

300-350TPH crushing plant features for its large scope production, good performance, convenient operation, this line can achieve high reduction ratio with great output.

The third largest Jaw crusher model PE900X1200 works as primary crushing, its over sized feed opening & unique Jaw plates make it readily crush 750mm into small sizes.

All the spare parts assembled are of top quality (bearing, motor, eccentric shaft, screen mesh, etc.), this ensure the stable working status for all the equipments.

Secondary crushing process is performed by two sets of impact crusher model PF-1315 which is superior in its larger feed opening and rotor, the final product sizes can be controlled through regulating impact-bracket.

Tertiary crusher such as VSI or washing machine may work as additional mining equipments to diversify the final products, meanwhile, tailor-made dust catcher or dust cover maybe the last step to perfect this line on the basis of environmental protection. The final products are of regular cube shape, high compressive strength, needle shape take up small proportion, no inner-cracks. They are quite suitable for speedway, bridge, tunnel and other construction projects.

Working Principle: Inquiry Now

Features:

1. Low energy consumption

2. Easy maintenance

3. All equipments made of high quality raw material

4. Customized equipment con

Parameters: Inquiry Now

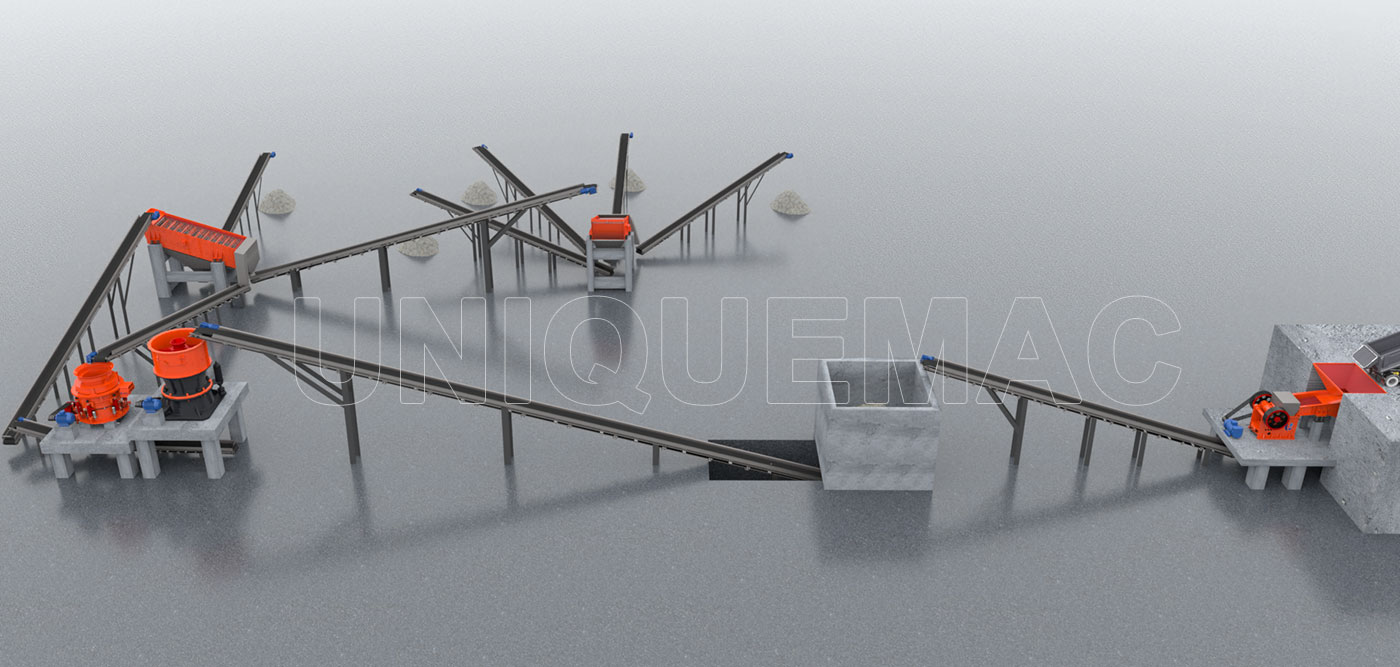

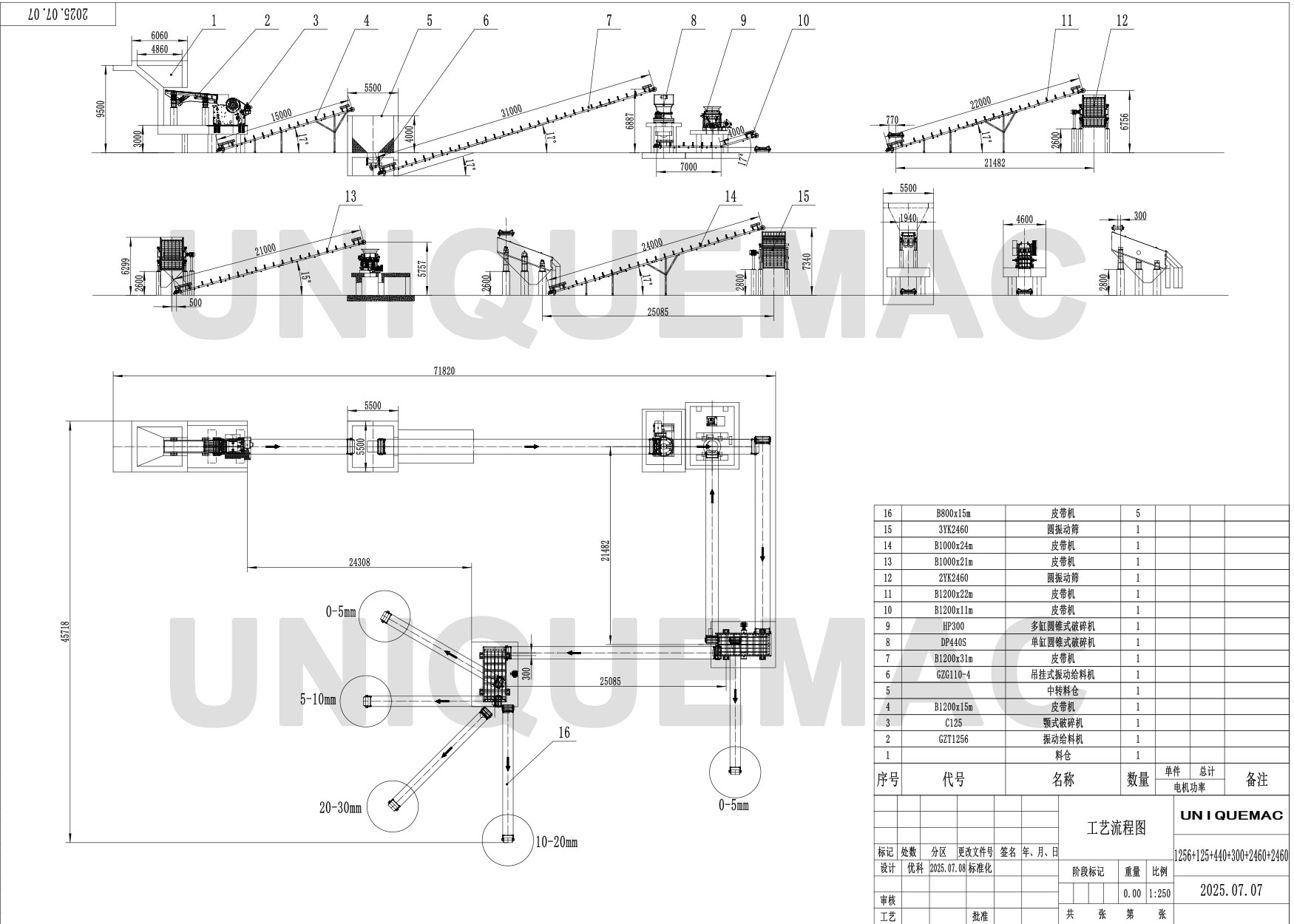

Main Components of 300~350T/H Crushing / Screening Plant :

Vibrating Feeder ZSW 600 X 130

Max Feeding Size: ≤7500mm

Power: 22 kw

Jaw Crusher PE-900 X 1200

Max Feeding Size: ≤750mm

Power: 110kw

Impact Crusher PF-1315 / 2 units

Max Feeding Size: ≤500mm

Power: 132kw x 2

Vibrating Screen 3YK1854 / 2 units

Sep1=40mm Sep2=20mm Sep3=5mm

Power: 22kw x 2

Auxiliary Components:

Belt Conveyor

B1200 X 19M

B1000 X 20M

B1000 X 20M

B1000 X 26M

B650 X 18M

B650 X 8M + B650 X 18M

B650 X 8M + B650 X 18M

Control system

Electronic Control Cabinet
