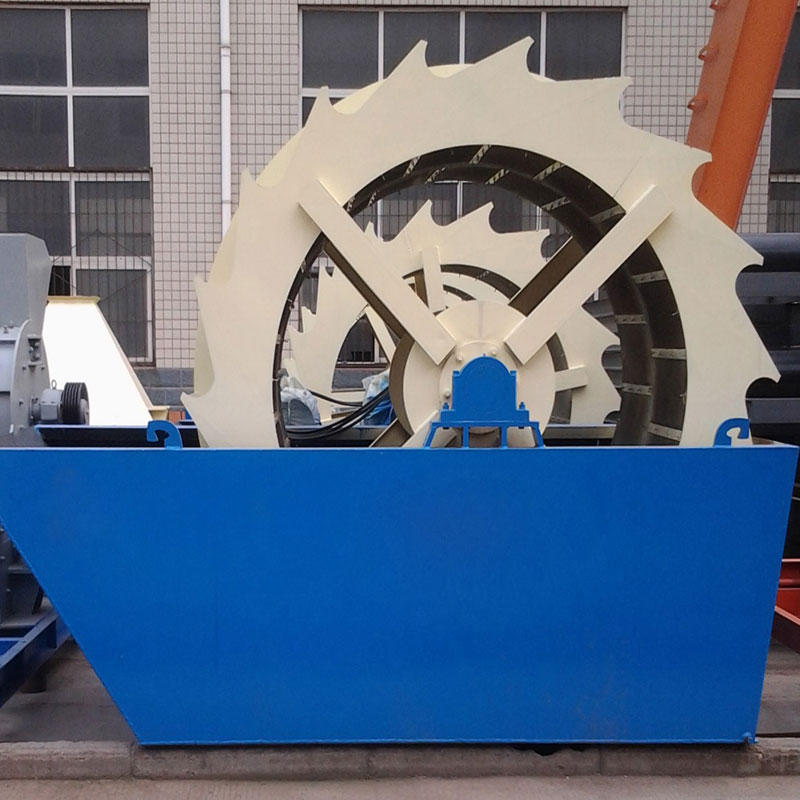

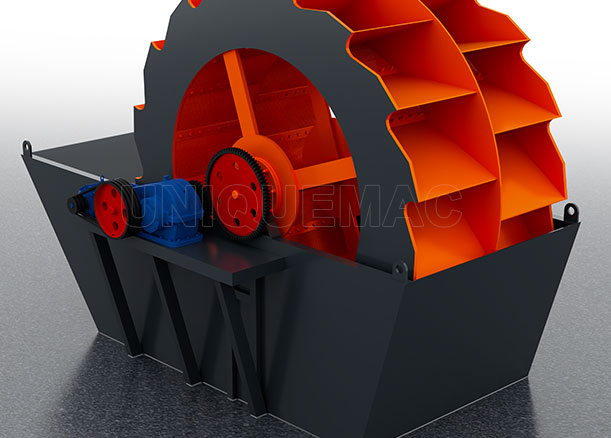

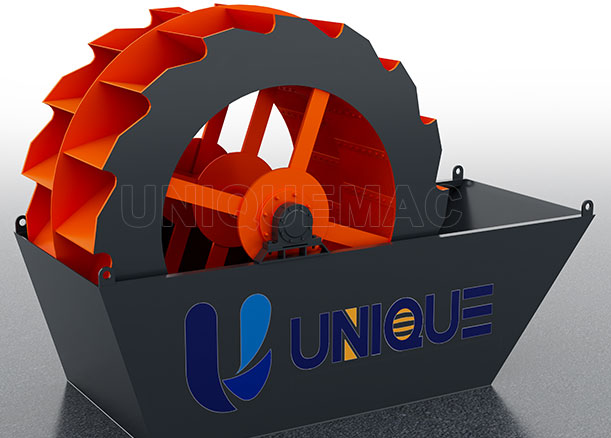

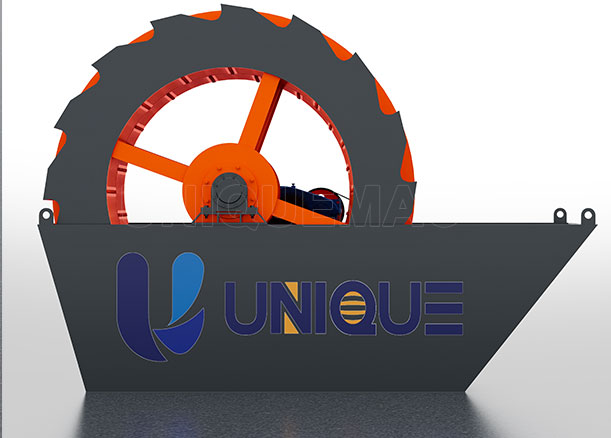

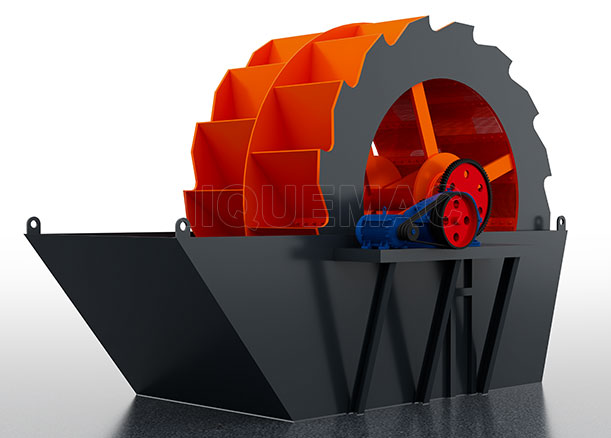

Wheel sand washer

Introduction:Wheel sand washer

1. This machine’s structure is simple. The impeller drive device is separated with water and the watered materiel avoiding that the bearing is damaged by Deeping in water, sand, or contamination.

2. This machine has obvious advantages compared with screw sand washer. The details are as follows:

a. The medium and fine sand are washed away less. The washed construction sand’s gradation and modulus of fineness can get the standard which is regulated in national ‘ construction sand’ and ‘ construction scree and gravel’.

b. There are almost no wearing parts except screen mesh.

Introduction: Inquiry Now

Wheel sand washer

1. This machine's structure is simple. The impeller drive device is separated with water and the watered materiel avoiding that the bearing is damaged by Deeping in water, sand, or contamination.

2. This machine has obvious advantages compared with screw sand washer. The details are as follows:

a. The medium and fine sand are washed away less. The washed construction sand's gradation and modulus of fineness can get the standard which is regulated in national ' construction sand' and ' construction scree and gravel'.

b. There are almost no wearing parts except screen mesh



Working Principle: Inquiry Now

Wheel type sand washer a professional cleaning devices for less than 8mm sand grain. Simple structure, impeller drive bearing unit with water and by water isolation material, to avoid bearing due to flooding, sand and pollutants cause to the damage phenomenon. In the job, fine sand and stone powder wastage is minimal. In addition, the screen has almost no wearing parts, long life, long-term without maintenance.

Parameters: Inquiry Now

Parameters:
Model Wheel Dia. (mm) Output (t/h) Motor  (kw) Dimension (mm) Total weight (kg)
XS-2200 2200 15~30 4 3150×1910×2280 3300
XS -2600 2600 20~50 5.5 3520×2390×2690 4600
XS -2900 2900 50~100 7.5 3820×2640×3200 6100
XS -3500 3500 120~200 11 4420×2930×3800 7900
