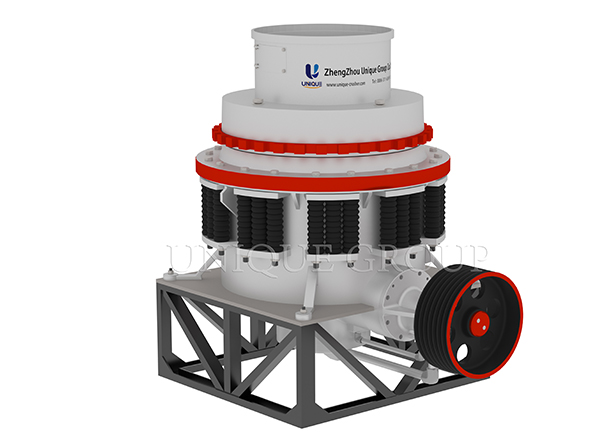

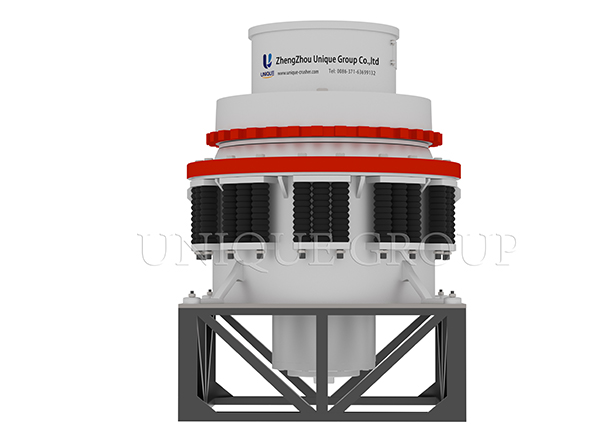

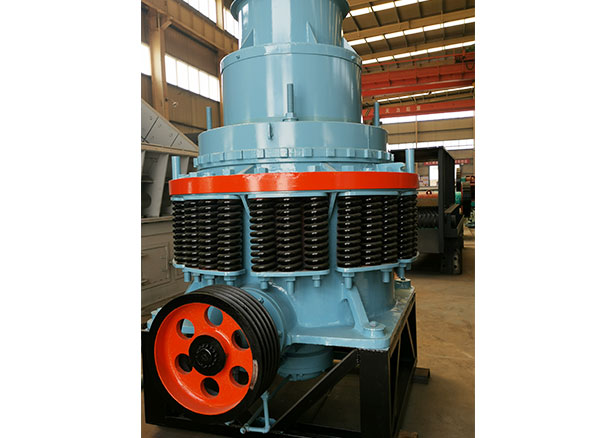

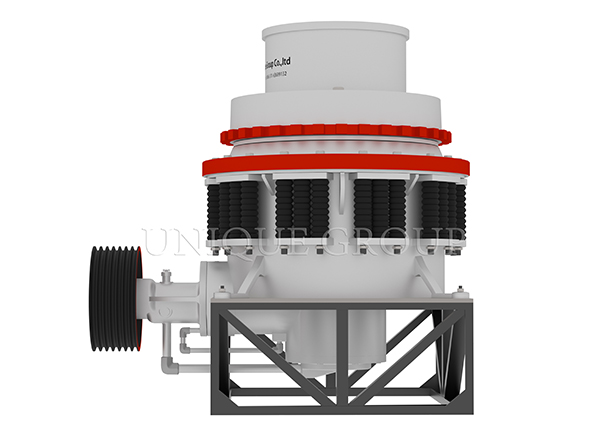

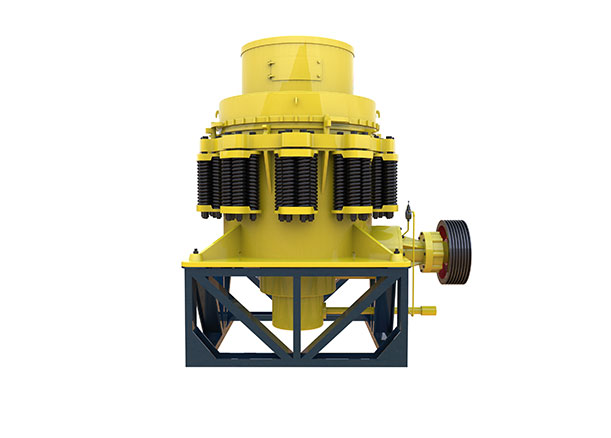

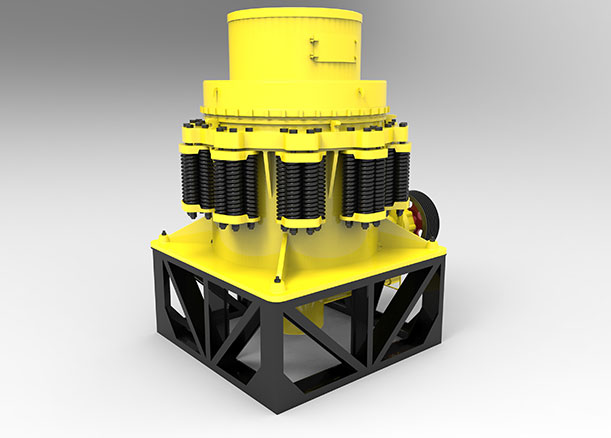

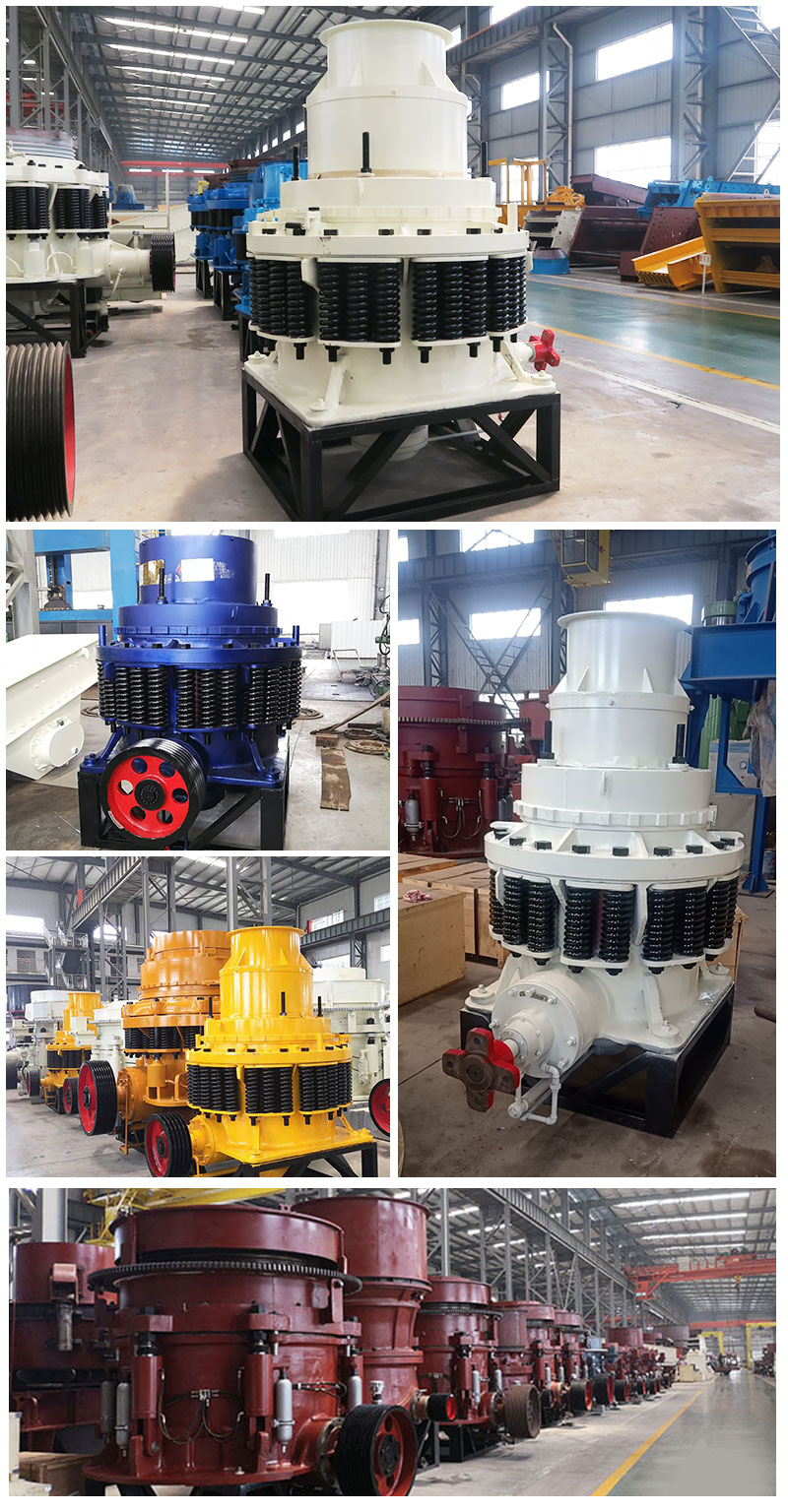

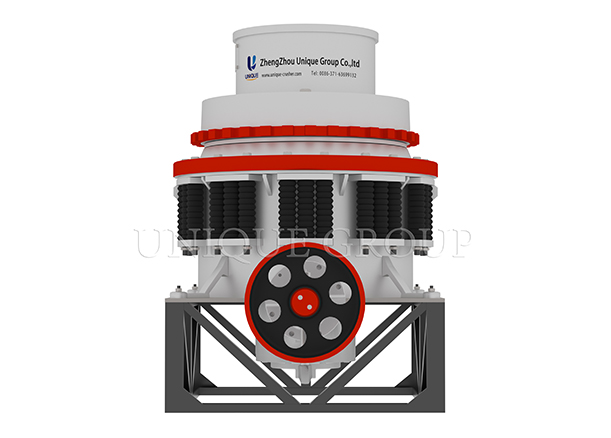

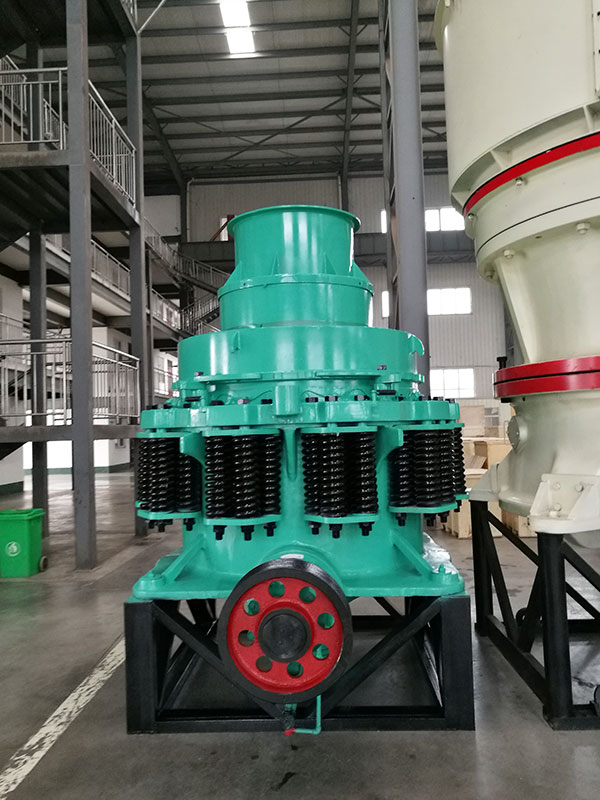

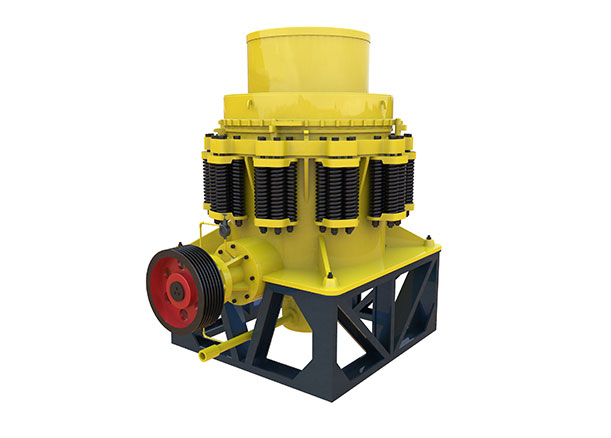

Spring cone crusher

Capacity:15-1000 TPH

Input Size:36mm–300mm

Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway

Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc. (for Hard Stone).

Introduction: Inquiry Now

Introduction:

Spring Cone Crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgies and so on. The Cone Crusher can crush materials with Moh’s scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.

Features

1.High capacity and superior quality;

2.Long working life of quick-wear parts, and low investment;

3.Dilute petrol stations for continuous lubrication to reduce downtime and maintenance time.

Working Principle: Inquiry Now

Working Principle

When the spring cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.

Parameters: Inquiry Now

Parameters:
Model Weight (t) Power (kw) Diameter (mm) Feeding (mm) Discharge (mm) Capacity (t/h)
PYB 900 11.2 55 Ф900 115 15-50 60-105
PYZ Ф900 60 5-20 50-90
PYD Ф900 50 3-13 15-50
PYB 1200 25 110 Ф1200 145 20-50 110-200
PYZ Ф1200 100 8-25 42-135
PYD Ф1200 50 3-15 18-105
PYB 1750 50.2 160 Ф1700 215 10-30 280-480
PYZ Ф1700 185 10-30 115-320
PYD Ф1700 85 5-15 75-230
PYB 2200 80 280 Ф2200 300 30-60 590-1000
PYZ Ф2200 230 10-30 200-580
PYD Ф2200 100 5-15 125
