Working principle of Hydraulic Cone Crushers

Introduction to Hydraulic Cone Crushers

Hydraulic cone crushers represent the pinnacle of modern crushing technology, combining mechanical efficiency with advanced hydraulic control systems. As of September 15, 2025, these machines continue to dominate medium-to-hard rock processing applications across global mining and aggregate industries. This article provides an in-depth examination of their operational modes, technical specifications, and practical applications. Core Components and Operating Principle

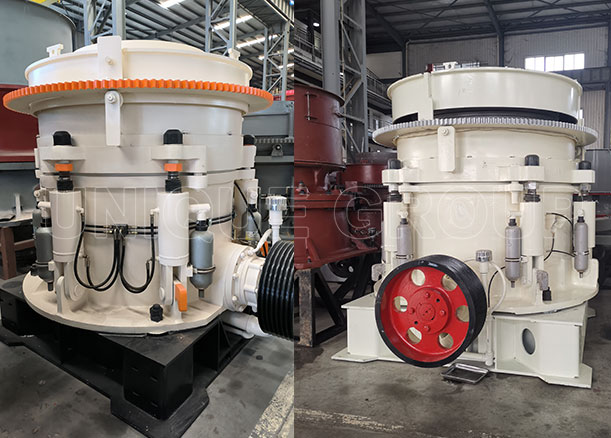

Structural Composition

• Main Frame: Heavy-duty steel construction supporting all components
• Eccentric Assembly: Precision-machined components for consistent gyratory motion
• Crushing Chamber: Comprising mantle (moving cone) and concave (fixed liner)
• Hydraulic System: Featuring cylinders, accumulators, and control valves (typical pressure: 2-5MPa)
• Intelligent Control Panel: Modern units incorporate IoT-enabled monitoring

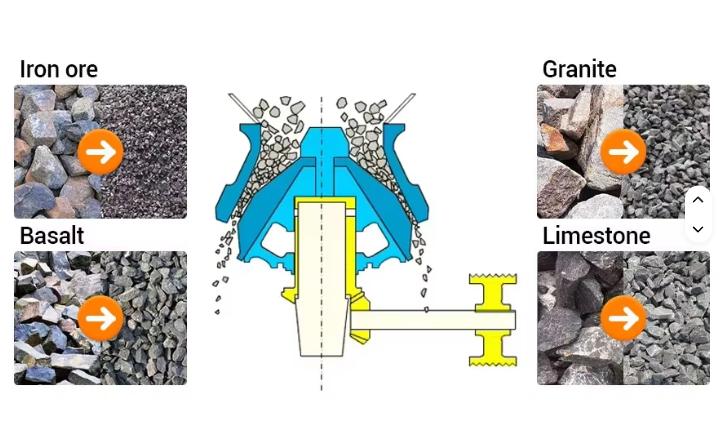

Fundamental Mechanics

The crusher transforms rotational energy from the motor into gyratory motion through:

• Motor-driven horizontal shaft rotation
• Gear transmission to eccentric bushing
• Eccentric-induced pendulum movement of the crushing cone
• Cyclic compression between mantle and concave surfaces

Primary Operational Modes

1. Coarse Crushing Mode

Characteristics:

• Large swing amplitude (15-25mm)
• Low rotational speed (200-300 RPM)
• High throughput capacity (up to 2000 tph in large models)
• Output size range: 25-60mm

Technical Parameters:

Metric	Typical Value
CSS*	25-60mm
Eccentric Throw	30-45mm
Power Draw	75-400kW

*CSS: Closed Side Setting Applications:

• Primary reduction of granite/basalt
• Mine ROM (Run-of-Mine) processing
• Large-scale aggregate plant feed preparation

2. Intermediate Crushing Mode

Performance Features:

• Balanced swing speed and amplitude
• Superior particle shape (cubicity >80%)
• Energy-efficient operation (15-20% less power than coarse mode)
• Product range: 10-30mm

Optimization Techniques:

• Dynamic CSS adjustment via hydraulic cylinders
• Variable eccentricity control
• Automated feed rate modulation

3. Fine Crushing & Shaping Mode

Specialized Attributes:

• High rotation speed (400-500 RPM)
• Multi-impact particle formation
• Excellent gradation control (3-10mm output)
• Low wear cost (0.8-1.2g/ton for hard rock)

  Comparative Advantages:

• Produces 25% more cubic particles vs. conventional methods
• Reduces recirculation load by 30-40%
• Enables direct production of specification sands

Advanced Control Methodologies

Smart Operation Systems

1. Adaptive Load Control

• Real-time monitoring of:
• Motor current (±2% accuracy)
• Hydraulic pressure (0.1MPa resolution)
• Bearing temperature (RTD sensors)
  2. Predictive Maintenance
• Vibration analysis (FFT spectrum monitoring)
• Liner wear tracking (3D scanning technology)
• Lubrication quality sensors (water content <0.5%)
  3. Energy Optimization
• Peak load shifting algorithms
• Eco-mode during off-peak hours
• Regenerative braking systems (new 2025 models)



Selection Criteria for Operational Modes

Material Considerations:

• Abrasion index (Ai) >0.5 → Coarse mode preferred
• Moisture content >3% → Reduced speed settings
• Flakiness index requirements → Fine crushing essential

Production Requirements:

• Throughput-focused: Coarse/intermediate modes
• Quality-focused: Fine/shaping modes
• Balanced operations: Multi-stage configurations

Economic Factors:

• Power cost >$0.15/kWh → Energy-saving modes
• Liner cost >$50/kg → Reduced-speed operation
• Labor costs → Full automation preferred

Maintenance Protocols by Mode

Coarse Crushing:

• Weekly eccentric bearing inspections
• Bi-monthly hydraulic accumulator checks
• 250-hour grease intervals

Fine Crushing:

• Daily liner wear measurements
• Real-time lubrication monitoring
• 500-hour full system diagnostics

General Best Practices:

• Maintain hydraulic oil cleanliness (ISO 4406 17/15/12)
• Monitor cooling system efficiency (ΔT<15°C)
• Calibration of sensors every 6 months

Emerging Technological Developments

Industry Trends:

1. AI-Powered Mode Switching

• Machine learning algorithms analyze:
• Feed composition (via camera systems)
• Market demand patterns
• Energy pricing fluctuations
  2. Hybrid Drive Systems
• Electric-hydraulic synergy:
• 25% faster response time
• 18% energy reduction
• Precision crushing for specialty aggregates
  3. Digital Twin Integration
• Virtual crusher simulations enable:
• Performance prediction
• Failure mode analysis
• Optimal mode selection

Conclusion and Future Outlook

Hydraulic cone crushers have evolved into sophisticated processing systems where operational mode selection directly impacts profitability. The 2025 generation of equipment demonstrates unprecedented flexibility, allowing real-time adjustments to:

• Market demands for specific aggregate shapes
• Fluctuating energy costs
• Varying feed material characteristics

Future developments will likely focus on:

• Complete autonomous operation
• Advanced material-specific crushing algorithms
• Integration with renewable energy systems

Proper understanding and implementation of these working modes enables operators to maximize equipment utilization while minimizing operational costs – a critical advantage in today’s competitive mineral processing environment.
