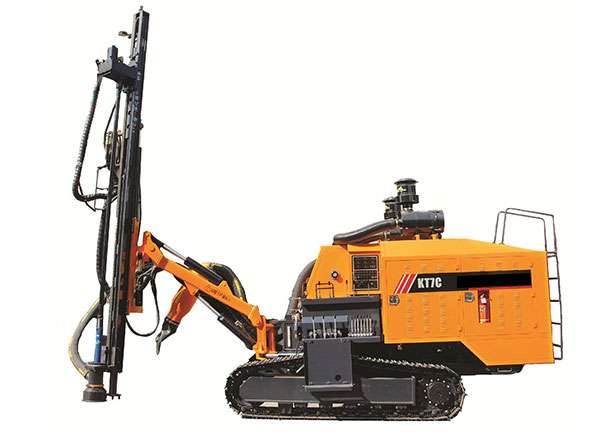

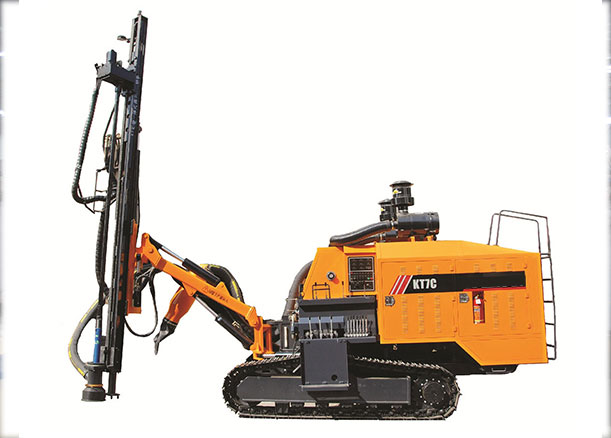

KT7C Drill rig
Introduction:The KT7C integrated open-air down -the-hole drilling rig is an advanced drilling equipment that integrates the down-the-hole drilling system and the screw air compression system. It is equipped with a Yuchai six-cylinder national three diesel engine to provide power for the two systems. It has a compact structure and good integrity. , Easy to move.
Introduction: Inquiry Now
The KT7C integrated open-air down -the-hole drilling rig is an advanced drilling equipment that integrates the down-the-hole drilling system and the screw air compression system. It is equipped with a Yuchai six-cylinder national three diesel engine to provide power for the two systems. It has a compact structure and good integrity. , Easy to move.
Working Principle: Inquiry Now
High-pressure single-stage compression screw with core drill rig equipment product knowledge of the nose, the application of leading international Tom's Y -shaped line, turnover rate ( 13m³ / min ) , pressure high ( 1.7 MPa ), high wind pressure Pneumatic impactor provides strong power, and the rock drilling speed is 20%-50% higher than that of the air pressure drill rig .KT7C integral high-pressure open-pit down-the-hole drilling rig is mainly used for rock work in stone works and open-pit mines.
Parameters: Inquiry Now
Rock drilling hardness | f=6-20 |
Drilling diameter mm | 90-105 |
Economic drilling depth m | 30 |
Walking speed Km/h | 2.5/4.0 |
Gradeability | 30° |
Ground clearance mm | 430 |
Whole machine power kW | 195 |
diesel engine | Yuchai YC6A260-T303 |
Screw machine displacement m 3 /min | 13 |
Screw machine exhaust pressure bar | 1.7 |
Overall dimensions (length × width × height) mm | 8000×2300×3000 |
Heavy volume Kg | 9600 |
Rotating speed r/min | 0-120 |
Rotation torque N*m | 2450 |
Maximum push-pull force N | 25000 |
Boom lifting angle | Up 28° Down 42° |
Pitch angle of carriage | 129° |
Slide angle | Right 38 ° left 35 ° |
Lateral horizontal swing angle of carriage | 42° ~89° to the right |
Drill boom swing angle | Right 39 ° left 60 ° |
Frame leveling angle | Up 10° Down 9° |
Push length at a time mm | 3000 |
Compensation length mm | 900 |
Impactor | HD35A ( optional HD45S) |
Drill pipe | Φ64×3000mm |
Dust catching method | Hydraulic cyclone laminar flow |
