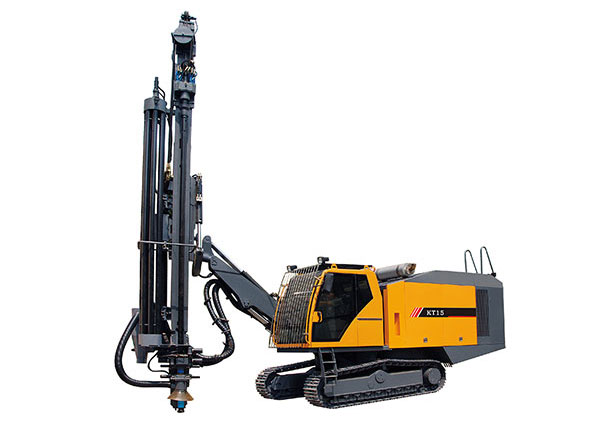

KT15 Drill rig

Introduction:The KT15 integrated open-pit DTH drill rig is a new type of rock drilling equipment carefully designed for the needs of large open-pit mines on the basis of years of development and production of DTH rigs.

Introduction: Inquiry Now

The KT15 integrated open-pit DTH drill rig is a new type of rock drilling equipment carefully designed for the needs of large open-pit mines on the basis of years of development and production of DTH rigs. The drilling rig's walking, propulsion, rotation and angle adjustment are all hydraulically driven, with strong power; equipped with high-pressure screw head and high-pressure pneumatic impactor, high drilling efficiency; equipped with hydraulic dry dust collector Collect dust and reduce environmental pollution; equipped with hydraulic rod reeling mechanism to remove the drill rod, floating joint to protect the thread of the drill rod, automatic rod reeling device to reduce labor intensity, air-conditioned cab to provide a comfortable working environment and automatic control to prevent jams The valve reduces the chance of stuck drilling. The drilling rig has the characteristics of good integrity, high degree of automation, good rock drilling effect, environmental protection and energy saving, convenient operation , flexible maneuverability and safe driving.

Working Principle: Inquiry Now

Features of KT15 type integrated open-air DTH drill carriage:1. The propulsion length is up to 5 meters at a time, which effectively reduces auxiliary time such as loading and unloading drill pipes and improves work efficiency;

2. Disc type automatic rod changing system, efficient and precise action, automatic rod changing drill depth up to 35 meters; 3. The swing angle of the carriage adopts an optimized luffing mechanism, with a total swing angle of 130° (right 97° , left 33° ), and the conversion between vertical holes and horizontal holes can be freely completed without changing the fulcrum; the minimum horizontal hole height is 550 ㎜, up to 4500 ; 4. Using Cummins electronic injection engine, strong power and reliable performance; 5. Adopt the output arrangement at both ends of a single engine, compact structure and convenient maintenance; 6. High wind pressure and large displacement air compression system ( 22m 3 /min , 20bar ), which ensures the rapid drilling of the impactor; 7. Highly integrated control system, friendly control interface, one person can freely control the whole machine; 8. The automatic leveling function of the walking mechanism makes the drill rig more adaptable to the rugged mountain road in the mine; 9.The double-brazing mechanism guides the drilling tool throughout the whole process to prevent deflection during drilling (guide the impactor when opening the hole and guide the drill rod when drilling).

Parameters: Inquiry Now

Rock drilling hardness f=6-20
Drilling diameter mm 135-190
Economic drilling depth (automatic extension depth) m 35
Walking speed Km/h 3.0
Climbing ability ° 25°
Ground clearance mm 430
Whole machine power Kw 298
diesel engine Cummins QSZ13-C400
Screw machine displacement m /min twenty two
Maximum exhaust pressure of screw machine bar 25
System working pressure bar 20
Overall dimensions (length × width × height) mm 11500×2716×3540
Heavy volume Kg 23000
Rotating speed r/min 0-118
Rotation torque N*m 4100
Maximum push-pull force N 65,000
Pitch angle of carriage 125°
Slide angle Right 97 ° to the right 33 °
Drill boom swing angle Right 42 ° left 15 °
Frame leveling angle Up 10° Down 10°
Push length at a time mm 5000
Compensation length mm 1800
Impactor 55A/65A
Drill rod ( φ diameter × drill rod length) mm φ89×5000/φ102×5000
Dust removal method Dry type (hydraulic driven cyclone laminar flow type) / Wet ( optional )
Connection method Automatic connection rod
Automatic anti-card mode Electro-hydraulic control anti-stuck
Drill pipe lubrication method Automatic oil injection lubrication
Drill pipe thread protection Equipped with a floating joint to protect the drill pipe thread
Drilling display Real-time display of drilling angle and drilling depth
